hansgrohe缸上型龍頭(含軸心) 46431000 (AXOR Edge 130 系列)
產品規格
- consists of: 3-hole rim mounted single lever bath mixer, baton hand shower, shower holder
- projection 210 mm
- connection type: basic set
- spray type mixer: normal spray
- spray type hand shower: Rain, Mono
- maximum pull-out length of hand shower: 1.45 m
- maximum flow rate at 3 bar: 20 l/min
- flow rate for bath spout at 3 bar: 20 l/min
- flow rate of hand shower at 3 bar: 9 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- ceramic cartridge
- temperature limitation adjustable
- non-return valve
- suitable for continous flow water heaters
- connection dimension: DN15

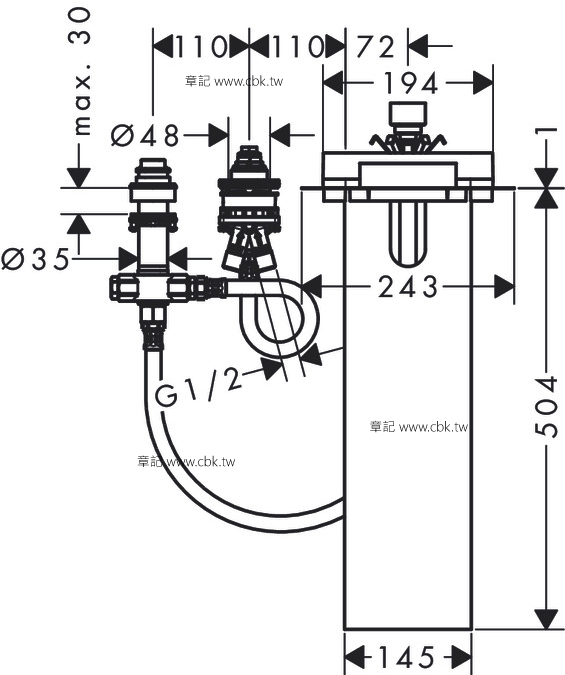

軸心規格
- sBox for quiet, smooth and protected hose guidance
- drilling diameter: 35 mm, 50 mm
- clamping range: 0 - 30 mm
- maximum pull-out length of hand shower: 1,45 m
- suitable for suitable for installation on bath rim
- connection thread: G ½
- connection hose length: 600 mm
- connection dimension: DN15
- bath rim width at least 100 mm
- drilling diameter on bath tub: two drilled holes Ø 50/51 mm and connection by sawing out required (consider template)
|
